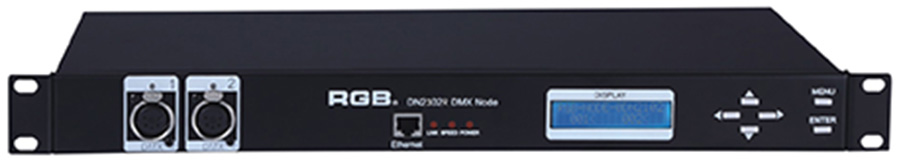

RGB-DN2302R Cabinet Network Decoder

中文

English

RGB-DN2302R RGB is the latest development, fully compatible with RDM protocol, two completely independent DMX link, rack-mounted network decoder.

RGB-DN2302R Network Decoder TCP / IP-based ARTNET and ACN standard network protocols and the stage lighting industry's most popular DMX512 and the most advanced RDM communication protocol between the seamless connection. In order to promote and enhance the popularization of the stage lighting network and network security design.

Scope: theater, concert hall, television and other venues.

Product Details

The main performance characteristics:
● 1 RJ45 Ethernet interface, 10 / 100M adaptive TCP / IP protocol
● With DHCP, DHCP is Dynamic Host Configuration Protocol (Dynamic Host Configuration Protocol)
● The LEDs indicate the status of each DMX port. Each port has an LED indicating DMX current status, DMX input LED is green, DMX output LED is red
● Compliant with RDM BSR E1.20, supporting ART-NET and ACN network protocols
● With 2 fully independent universes, any number of DMX area can be set up to 512 addresses, as long as no more than 32,767; each port can be set to input and output
● The lighting control signal communication format is DMX-512/1990
● It is possible to change various parameters through the network setting on the PC
● Standard rack design (1U)
● 10BASE-T compliant with IEEE802.3i, 10BASE-TX for 802.3u, and PoE for 802.3af (optional)
● Power: 100 ~ 265V 50-60Hz, 1A insurance
Technical Parameters:
Overall dimensions: width × depth × height = 480 × 220 × 44 (mm3)
Weight: 2.0kg
